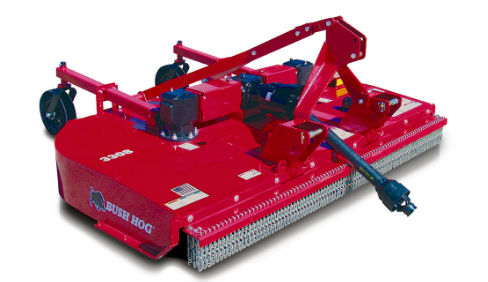

Bush Hog 3308SH
3308 Multi-Spindle 3308 & SH Series Rotary Cutters 3308SH
Overview:
The 3308 models are designed to cut grass, weeds, and up to 2-inches diameter brush. The lift and semi-mount models are available with economical twin beam axles (shown below) or heavy duty cushioned axles (here). The pull and the 3308SH models have only the heavy duty axles. The 3308 models deliver what you would expe... + Read More
Features
Performance Features
- 8-feet 3-inches Cutting Width
- Lift, Pull & Semi-Mount Models
- SH Model Ideal For Orchards
- Fiber Disc Cross Shafts
- Heavy Rugged Deck Structure.
Construction Features
- 10-Gauge Deck Construction
- 7-Gauge Strongbacks
- 1/4-inch Sidebands
- Replaceable Wide Skids
- 5 Year Gearbox Limited Warranty
- Powder Coat Paint
Safety Features
- Safety Tow Chain (Standard on Pull Model)
- Safety Shields Combination of Front and Rear Chains and Rear Band
Product Features
3308SH Model — Also available in a pull model with self leveling tongue and the heavy duty axle (fixed axle arms not casters as shown above), a selection of 20-inches solid laminated tires or used aircraft tires and manual or hydraulic height control.
Optional Heavy Duty Axle On Lift & Semi-Mount Models
Cross Shaft From Splitter Box To Outboard Gear Box
Specifications
| Model | 3308SH |
| Cutting Width | 8-feet 3-inches |
| Cutting Capacity | Up to 2-inches |
| Cutting Height | 2 to 13-inches |
| Dimensions (width x length) | 8-feet 10-inches x 7-feet, 11-inches (Lift), 12-feet 9-inches (Pull) |
| Type Hitch | ASAE Cat. 1 & 2 (No top link) Semi Mount, 0 to 13-inches Offset |
| Deck Thickness | 10-gauge |
| Side Bands | 1/4-inch x 12-inches |
| Minimum Tractor HP | 40 PTO (Semi-Mount) |
| Driveline | ASAE Category 4 with Slip Clutch |
| Cross Shaft | Fiber Disc |
| Gearbox HP | Center, 140, Outboard, 130 |
| Tractor PTO Speed | 540 RPM |
| Driveline Protection | 4 Plate PTO Slip Clutch |
| Height Adjustment | Heavy Duty Axle - Manual or Hydraulic |
| Blade Holder(s) | Round |
| Blades | 1/2-inch x 4-inches - Uplift |
| Blade Tip Speed | 16,121 FPM/540 RPM |
| Blade Overlap | 5-inches |
| Tires | Laminated |
| Axles | Heavy Duty Axle Bundle with Shock Absorber |
| Deflectors | Combination of Front and Rear Chains and Rear Band |
| Safety Tow Chain | N/A |
| Approximate Weight | 1,944-lbs. |
