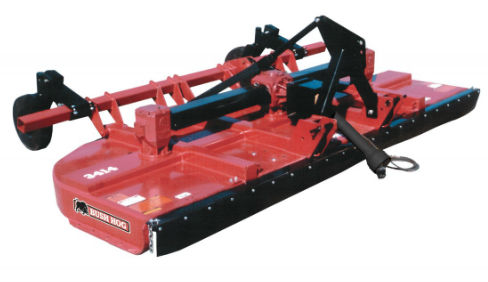

| Model 3414 |
Pull |
| Cutting Width |
14 feet |
| Cutting Capacity |
2 1/2-inch Diameter |
| Cutting Height |
2 to 13 inches |
| Dimensions (width x length) |
14 ft 7 inches x 13 ft 5 inches |
| Type Hitch |
Self-Leveling |
| Deck Thickness |
10 gauge |
| Side Bands |
1/4 x 10 inches |
| Minimum Tractor HP |
75 PTO |
| Driveline |
ASAE Category 5 |
| Cross Shaft |
ASAE Cat5 Rubber Element Cross Shaft with Cat4 Shearpin |
| Gearbox HP |
(3) 210 Center and 205 Outboard |
| Tractor PTO Speed |
540/1000 RPM |
| Driveline Protection |
4 Plate PTO Slip Clutch |
| Height Adjustment |
Choice of Manual Height Bundle or Hydraulic |
| Blade Holder (s) |
Straight or Round |
| Blades |
1/2 inch X 4 inches – Uplift |
| Blade Tip Speed |
15,242 FPM |
| Blade Overlap |
3 Inches |
| Tires |
Laminated |
| Axles |
Rubber Cushioned; Choice of Single or Dual Axle |
| Deflectors |
Front Belting and Rear Bands or Chains |
| Safety Tow Chain |
Standard |
| Approximate Weight |
3419 lbs. |
| Options |
Shredder Attachment |
