Construction Attachments Inc. Xtreme Duty High Capacity Bucket 4-IN-1 Multi-Purpose Attachment
Multi-Purpose Buckets Xtreme Duty High Capacity Bucket 4-IN-1 Multi-Purpose Attachment
Overview:

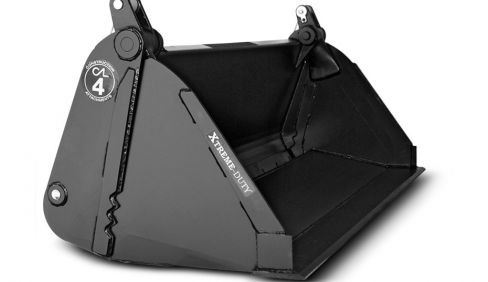

Xtreme Duty High Capacity Bucket Bucket 4-IN-1 Multi-Purpose Attachment is designed for rubber tire host machines up to 100hp and rubber track host machines up to 80 horsepower. This bucket is available in 67", 73" and 76" with the following options: bolt-on teeth, weld-on teeth, bolt-on cutting edge, bolt-on tooth bar and extended tooth bar.
Features
XTREME DUTY HIGH CAPACITY 4-IN-1 MULTI-PURPOSE BUCKET
Product Features:
- For rubber tire host machines up to 100 hp or rubber track host machines up to 80 hp, and tractor loaders
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6” x 5/8” front cutting edge to accommodate all bolt-on options
- Solid 6” x ¾” edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section
- Models include 67”, 73” and 76”
Specifications
| Model | 1MPHC |
|---|---|
| Item | 1MPHC67 1MPHC67T 1MPHC67WT 1MPHC67E 1MPHC67TB 1MPHC67ETB 1MPHC73 1MPHC73T 1MPHC73WT 1MPHC73E 1MPHC73TB 1MPHC73ETB 1MPHC76 1MPHC76T 1MPHC76WT 1MPHC76E 1MPHC76TB 1MPHC76ETB |
| Item Cont. | No |
| Product Category | 4-IN-1 Multi-Purpose Buckets |
| Duty Rating | Xtreme Duty [Standard] |
| Product Type | High Capacity |
| Width (Inches) | 67, 73, 76 |
| Attachment Options | Bolt-on Edge (E), Bolt-on Extended Tooth Bar (ETB), Bolt-on Teeth (T), Bolt-on Tooth Bar (TB), Weld-on Teeth (WT), None |
| # of Teeth | 0-8 |
| Heaped Capacity - Cu Ft | 15.39 (67"), 16.89 (73"), 17.63 (76") |
| Max Clam Opening (IN) | 40.25 |
| Weight (LBS) | 874-1075 |
| OEM Colors Available | Yes |
| Designed For Use | loading, digging, back filling, clam loading, bull dozing, clamping, bottom dumping, scraping |
| Suitable For | Rubber Track Host Machine, Rubber Tire Host Machine, Tractor Loaders |
