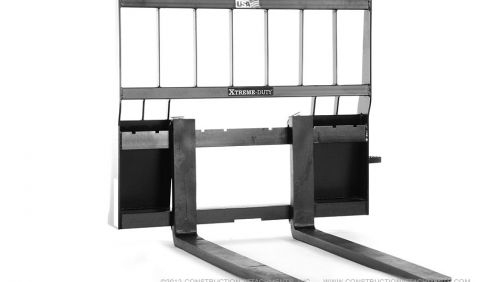

Construction Attachments Inc. Xtreme Duty Heavy Lift Pallet Forks
Pallet Fork Attachments Xtreme Duty Heavy Lift Pallet Forks
Overview:
Pallet Forks designed with heavy lift capacity for skid steer and tractor loaders. Top guard is designed for maximum visibility. Adjustable fork widths from 6.5” to 44.75” for standard frame and from 6.5” to 56.5” for wide frame. Forged tines meet ITA standards for strength and durability. Available in 42", 48", 60", 72", 96" models.
Features
XTREME DUTY HEAVY LIFT PALLET FORKS BY CONSTRUCTION ATTACHMENTS INC.®
Product Features:
- For skid steer and tractor loaders
- Top guard designed to provide operator load visibility
- Adjustable fork widths from 6 ½" to 44 ¾" for standard frame
- Adjustable fork widths from 6 ½" to 56 ½" for wide frame
- Models include 42", 48", 60", 72" and 96"
- Forged tines that meet ITA standards for strength, durability and longevity
Standard Frame Pallet Fork Specs:
- Standard frame size 45 ½" W x 38 ½" H
- Frame may be purchased separately; call for pricing
Wide Frame Pallet Fork Specs:
- Wide frame size 57" W x 38 ½" H
- Wide frame may be necessary for certain hitches
- Frame may be purchased separately; call for pricing
Specifications
| Model | 1PFHL |
|---|---|
| Item | 1PFHL42 , 1PFHL48 , 1PFHL60 , 1PFHL72 , 1PFHL96 , 1PFWFHL42 , 1PFWFHL48 1PFWFHL60 , 1PFWFHL72 , 1PFWFHL96 |
| Product Category | Pallet Forks |
| Duty Rating | Xtreme Duty [Standard] |
| Product Type | Heavy Lift |
| Fork Length (In) | 42", 48", 60", 72", 96" |
| Fork Size (In) | 4" x 1 1/2" (or 4" x 1 3/4" for 96" model) |
| Fork Lift Capacity (Lbs) | 5,500 (Models 42"-72") , 6,400 (96") |
| Frame Size (In) | 45.5" W x 38.5" H, or 57" W x 38.5" H (Wide Frame) |
| Weight (LBS) | 384-665 |
| OEM Colors Available | Yes |
| Designed For Use | lifting, carrying |
| Suitable For | Skid Steers, Tractor Loaders |
