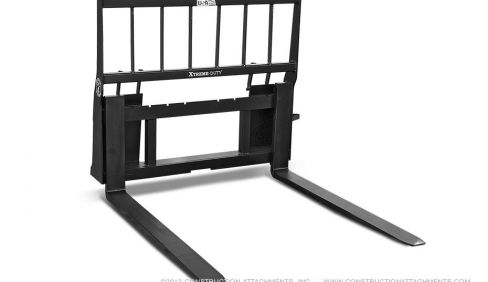

Construction Attachments Inc. Xtreme Duty Pallet Forks
Pallet Fork Attachments Xtreme Duty Pallet Forks
Overview:
Pallet Forks designed for skid steer and tractor loaders with top guard designed for optimum visibility. Adjustable fork widths from 6 ½" to 44 ¾" for standard frames, and from 6 ½" to 56 ½" for wide frames. Forged tines meet ITA standards.
Features
XTREME DUTY PALLET FORKS BY CONSTRUCTION ATTACHMENTS INC.®
Product Features:
- For skid steer and tractor loaders
- Top guard designed to provide load visibility
- Adjustable fork widths from 6 ½" to 44 ¾" for standard frame
- Models include 36", 42", 48", 60" and 72"
- Adjustable fork widths from 6 ½" to 56 ½" for wide frame
- Forged tines that meet ITA standards for strength, durability and longevity
- Versatile bolt on operator step for ease of machine accessibility
Standard Frame Pallet Fork Specs:
- Frame size 45 ½” W x 38 ½” H
- Frame and fork tines may be purchased separately; call for pricing
Wide Frame Pallet Fork Specs:
- Frame Size 57” W x 38 ½” H
- Wide frame may be necessary for certain hitches
- Frame may be purchased separately; call for pricing
Specifications
| Model | 1PF |
|---|---|
| Item | 1PF36 , 1PF42 , 1PF48 , 1PF60 , 1PF72 , 1PFWF36 , 1PFWF42 , 1PFWF48 , 1PFWF60 , 1PFWF72 |
| Product Category | Pallet Forks |
| Duty Rating | Xtreme Duty [Standard] |
| Product Type | No |
| Fork Length (In) | 36", 42", 48", 60", 72" |
| Fork Size (In) | 4" x 1 3/8" |
| Fork Lift Capacity (Lbs) | 4,000 |
| Frame Size (In) | 45.5" W x 38.5" H, or 57" W x 38.5" H (Wide Frame) |
| Weight (LBS) | 339-469 |
| OEM Colors Available | Yes |
| Designed For Use | lifting, carrying |
| Suitable For | Skid Steers, Tractor Loaders |
