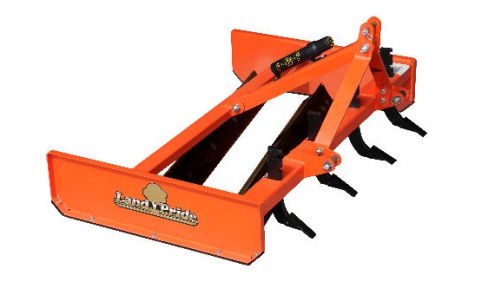

Land Pride GS0560
Features
| Features | Benefits |
| Cat. 1 and Cat.1 Quick Hitch compatible. Has lower hitch clevis type mountings. |
Makes for faster and easier hookup to the tractor. |
| 18-33 hp requirements with 48" & 60" working widths. |
Makes it compatible with many popular smaller sized and properly ballasted compact utility tractors in use today. |
| 3-position scarifier shanks. | Allows the scraper to be adjusted to desired amount of cultivation and grading action. |
| Reversible heat-treated, high-carbon steel grading blades. |
For excellent wear resistance and long service life. |
| Hardened tips on scarifier shanks. | Assures long service life. |
| Replaceable and full length skid shoes. | Makes for easier operation and long unit life. |
| Reversible skid shoes. | Extends the life of the skid shoes. |
| Heavy duty frame construction. | Assures long lasting reliability and performance. |
Specifications
| Model | GS0560 |
| Working width | 60" |
| Overall width | 63 3/8" |
| Number of scarifier shanks | 4 |
| Tractor hp requirement | 18-33 hp |
| Weight without optional rear blades Weight of optional rear blades |
350 lbs. 70lbs |
| Overall length | 44 3/8" |
| Overall height | 31 1/8" |
| Side panel thickness | 3/16" thick with 1 1/2" formed edges. |
| Front main beam & scarifier support. | 4"x 3" reinforced heavy wall tubing. |
| Rear beam construction | 3"x 2" heavy wall tubing. |
| Skid Shoe Dimensions | 1/4" Thick x 1 1/2" wide x 40" long. |
| Scarifier shank construction | Heat treated, 3-position shank with dimpled-on hardened tips. |
| Grader blades | Two 3/8" x 6" high-carbon, heat-treated blades that are reversible and replaceable. |
| Shank adjustments | 3 3/4" and 1 1/2" below grade level. 1/2" above grade level. |
| Lower 3-point attachment | Clevis type |
| Hitch type | Category 1 and Category 1 Quick Hitch |
| Color selections | Land Pride Beige or Orange |
