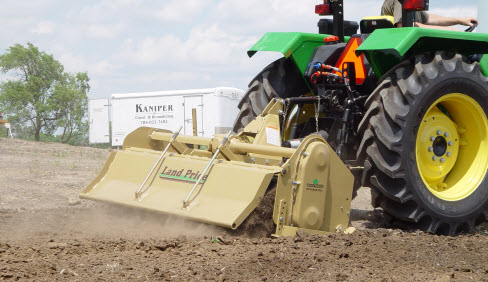

Land Pride RTR2570
RTR25 Series Rotary Tillers RTR2570
Overview:
RTR25 Series Land Pride Tillers have applications in landscaping, nurseries, gardens, and medium-duty commercial use. Their reverse-tilling action makes them ideal for seedbed or planting preparation and their 70" width and #100 drive chain make them perfect for your commercial operation.
The Land Pride RTR25, like ... + Read More
Features
| FEATURES | BENEFITS |
|---|---|
| American made | Many tillers are imported. American made means better parts availability. |
| Reverse tilling action | Reverse action ‘sucks’ tiller into ground, does not walk on top of hard ground like forward rotation tillers can. |
| Tractor HP Rating | 25-55 HP |
| Gearbox warranty | 3 Years on housing, gears, shafts, seals, bearings. Shows our confidence in the product. |
| Stamped upper hitch plate | Stamped plate adds additional strength to hitch. |
| Hitch bolted to inside of support | Force is applied downward on top hitch, by bolting hitch to inside of support, keeps hitch from spreading outward. |
| Hitch Offset capability | Offset 5” by moving lower hitch points, allows to cover right tire track. |
| Fits Land Pride Quick-Hitch | Allows for quick and easy one person hook-up. Cannot be used with offset. |
| Adjustable Parking stand | Allows for easy hook-up and storage. |
| Adjustable skid shoes | Control depth from various settings. |
| Wear shield on left skid shoe | Shield protects lower portion of chain cover from wearing due to dragging in the soil. |
| Formed rear deflector with springs | Formed steel gives the rear deflector additional strength. Springs allow deflector to bounce as it hits obstructions. |
| Front deflector plate | Front deflector plate is flexible to take the beating rocks or debris will give it. |
| Material separator behind tilling action |
3/8" Rods sift material letting bigger items fall first. Sifted soil falls last burying the bigger items. Attachment is one all welded piece for easy assembly. |
| Front deflector plate | Front deflector plate is flexible to take the beating rocks or debris will give it. |
| Six tines per flange | Six tines go through the ground better than four. |
| “C” Tines | C Tines take less horsepower to move through the ground. |
| 3” O.D. x 1/4" wall tubing with stub shafts on ends | Superior strength in oversize tubing. |
| 17” Rotor swing diameter | For deep tilling action. |
| Double lip seal on rotor bearing | Double lip seal keeps the dirt out and the grease in. |
| Cat. 3 driveline with slip-clutch protection | Heavy driveline for rough conditions. Slip-clutch protects other drive train components and saves having to replace shear bolts. |
| #100 Drive chain enclosed in oil bath | Heavy-duty drive chain reduces stretching. Oil keeps constant lubrication and holds wear to a minimum. |
| Easy to adjust chain tightener | Cast iron chain tightener is a simple bolt adjustment to keep constant tension on the chain. |
| Stamped chain cover | Stamped forming adds additional strength. |
| Spring tines behind tilling action | Spring tines sift the material letting bigger items fall first. Sifted soil falls last burying the bigger items. |
Specifications
| Model | RTR2570 |
| Recommended Tractor PTO HP | 25-75 Horsepower |
| Weight | 868 lbs. |
| Tilling Width | 70" |
| Overall Width | 76 3/4" |
| 3-Point Hitch Type | Category 1 with Adjustable lower Hitch Clevises Fits Land Pride Quick Hitch |
| Offset Capabilities | Yes (Cannot offset with Quick Hitch) |
| Number of Flanges | 9 |
| Number of Tines per Flange | 6 ea. “C” shaped blades |
| Tine Construction | High Carbon heat treated “C” shaped blades |
| Skid Shoes | Adjustable |
| Storage Stands | Adjustable |
| Rear Deflector | Spring Loaded, adjustable, profile stamped rear deflector |
| Front Protector | Plate with reinforced rubber insert |
| Driveline | ASAE Category III Heavy Duty Friction Clutch-Standard |
| Gearbox | 45 HP Input at 540 rpm 1.92:1 Ratio Cast Iron Housing, Straight Bevel Gears |
| Gearbox Oil Capacity and Type | 1.65 Pints of Gear Lube 80-90W EP |
| Drive Chain | #100 Roller chain Fully enclosed in oil bath with drain plug, fill plug and skid protection |
| Drive Chain Lubrication | Shell Gadus S2 V2200 00 flowable grease or equivalent Land Pride Part #821-045C (32 oz. bottle) |
| Sprockets | Hardened Teeth |
| Rotor Swing Diameter | 17" |
| Rotor Shaft Speed | 220 rpm at 540 rpm PTO |
| Coil Spring "Sifting" Tines | 46 |
