Paladin Attachments Model 330
Trenchers Model 330
Overview:

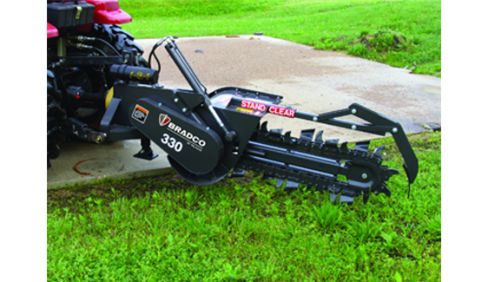

Bradco 330 Trenchers requires rear hydraulics to run the machine. Comes with light/medium duty boom and crumber with replaceable wear strips. Easy installation and operation.
Features
- Category 1ASAE S217.12 standard, three-point mount for 15–30 PTO HP hydrostatic tractors
- Maintenance-free PTO shaft drive with automatic slip clutch for overload protection
- 14" discharge auger
- 30" and 36" digging depth available to fit most applications
- 38,000 lb 1.654" anti-back flex-chain for tooth pattern versatility to support many soil types and conditions
- Compatible with model 615 chains
- ASAE S278.6 standard quick-attach compatible
- Support stand is a standard feature
Specifications
| Model | 330 | |
| Transport | ||
| Trench Depth with Auger at 65º Digging Angle | 30" | 36" |
| Chain Width | 3.0" | 3.0" |
| 4.5" | 4.5" | |
| 6.0" | 6.0" | |
| 8.0" | 8.0" | |
| C. Recommended Trenching Angle | 65º | 65º |
| Headshaft Height (Auger Touching Ground) | 8.5" | 8.5" |
| Overall Length | 73" | 79" |
| Overall Width | 38" | 38" |
| Overall Height | 29" | 29" |
| Spoil Discharge Reach | 21" | 21" |
| Length from 3-Point to Headshaft (center of gravity) | 24" | 24" |
| . Transport Angle | 48º | 48º |
| Weight with 6" x 36" chain, boom & crumber | 650 lbs | 650 lbs |
| Hydraulic System | ||
| Operating Hydraulic System | 2000 to 25000 PSI | 2000 to 25000 PSI |
| Rear PTO RPM Rating | 540 RPM | 540 RPM |
| Rear PTO HP Rating | 15 to 30 HP | 15 to 30 HP |
