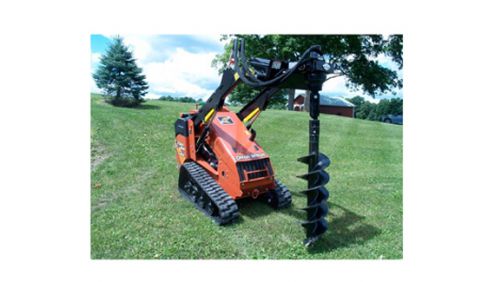

Paladin Attachments Augers, X900 And X1500 Mini
Augers Augers, X900 And X1500 Mini
Overview:
Designed for the CTC (Compact Tool Carriers) mini skid steers, to bore holes from 4- to 36-inch diameters. Great for landscapers and contractors, allowing them to get into tight areas to get their holes bored.
Features
X900 Features
- available for mini loaders
- maximum output torque 1,029 lb-ft.
- 2-9/16” round output shaft
- dual pivot with lockout pin to single pivot
- maximum 3,000 PSI
- 15” maximum auger diameter
- 2 year comprehensive warranty
- 5 year warranty on planetary
X1500 Features
- available for mini loaders
- maximum output torque 1,998 lb-ft.
- 2-9/16” round output shaft
- dual pivot with lockout pin to single pivot
- maximum 3,000 PSI
- 30” maximum auger diameter
- 2-year comprehensive warranty
- 5 year warranty on planetary
Specifications
X900 (Planetary)
| Maximum auger diameter | 15" | 381 mm |
| Minimum hydraulic flow | 8 GPM | 23 LPM |
| Maximum hydraulic flow | 16 GPM | 57 LPM |
| Maximum Continuous Operating PSI | 3000 PSI | 207 bar |
| Output shaft options | 2 9/16" round | 65 mm |
_
Output Speed
| Flow | 8 GPM | 30 LPM |
| Speed | 61 RPM |
_
| Flow | 10 GPM | 30 LPM |
| Speed | 76 RPM |
_
| Flow | 12 GPM | 45 LPM |
| Speed | 91 RPM |
_
| Flow | 14 GPM | 53 LPM |
| Speed | 106 RPM |
_
| Flow | 16 GPM | 61 LPM |
| Speed | 121 RPM |
_
Output Torque
| Pressure | 2000 PSI | 138 BAR |
| Torque | 671 lb. ft. | 910 N. m. |
_
| Pressure | 2500 PSI | 172 BAR |
| Torque | 849 lb. ft. | 1151 N. m. |
_
| Pressure | 3000 PSI | 207 BAR |
| Torque | 1029 lb. ft. | 1395 N. m. |
_
X1500 (Planetary)
| Maximum auger diameter | 30" | 762 mm |
| Minimum hydraulic flow | 8 GPM | 30 LPM |
| Maximum hydraulic flow | 16 GPM | 61 LPM |
| Maximum Continuous Operating PSI | 3000 PSI | 207 bar |
| Output shaft options | 2 9/16" round | 65 mm |
