Pequea TS24 / NOT AVAILABLE

New Products / Pequea / Hay Tools / Hay Rakes / Rotary Rakes / TS24

Double tap to zoom



Features

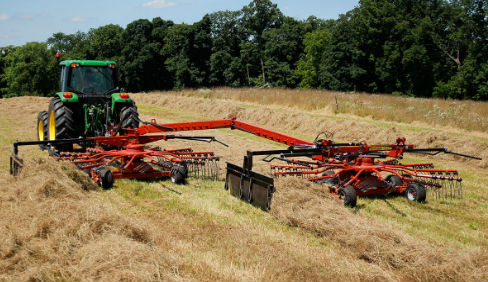

Pequea's HR-TS24 is is a dual rotor rake that can either be used to rake two separate windrows or one large windrow depending on your needs. The TS24 features two heavy duty 13 Arm rotors, a hydraulically adjustable curtain and lift cylinders under both rotors. This highly adaptable and versatile machine is the ultimate rotary rake.

Specifications

Working Width 15-27'
Raking Width 13-24'
Transport Width 100"
Gearbox Sealed
Gear Reduction 9.7:1
Number of Rotors 2
Tine Arms per Rotor  13
Double Tines per Arm 4
PTO HP Requirement 50 HP
Hydraulic Requirement 8 GPM/1800 psi
Direction of Raking Action      Left
Weight 3,840
Axle Walking Beams
Tire and Wheel 18.5 x 8 Flotation Tire on 4 Bolt Painted Steel Rim
