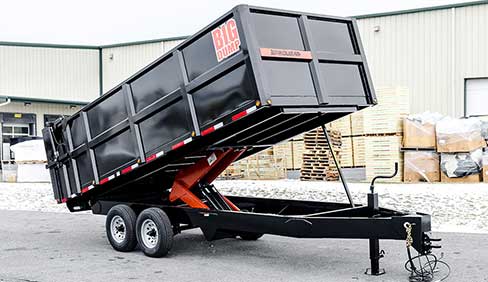

Pequea Big Dump
Dump Trailers Big Dump
Overview:
These low profile dump trailers offer the ability to haul your equipment to the job and then use it to fill the dump body with a monster payload.
Available in lengths of 16' and 18' with a GVWR of up to 25,000 (with dual axles), the Big Dump is no joke. It is available in a bumber pull or gooseneck configuration. Fe... + Read More
Features
Deckover Dump Trailer available in 16' or 18'.
Specifications
| Bed Length | 16' |
| Bed Width | 91'' |
| Bed Heigth | 39'' |
| Struck Capacity | 485 cu ft ( 18 cu yd ) |
| Side Panels | 4' |
| Lift | 12 ton scissor hoist |
| Dump Angle | 50° |
| Main Frame | 10'' x 15.3 lb Structural Channel |
| Axles | Available up to 25,000lb GVWR |
| Suspension | Slipper Springs or Torflex |
| Hitch | Aframe or Gooseneck |
| Coupler | Adj. 2 5/16'' Ball Coupler |
| Jack | 10,000lb Drop Leg |
| Approx Weight | 6,500lbs |
| Bed Length | 18' |
| Bed Width | 91'' |
| Bed Heigth | 39'' |
| Struck Capacity | 546 cu ft ( 20.2 cu yd ) |
| Side Panels | 4' |
| Lift | 12 ton scissor hoist |
| Dump Angle | 50° |
| Main Frame | 10'' x 15.3 lb Structural Channel |
| Axles | Available up to 25,000 GVWR |
| Suspension | Slipper Springs or Torflex |
| Hitch | Aframe or Gooseneck |
| Coupler | Adj. 2 5/16'' Ball Coupler |
| Jack | 10,000lb Drop Leg |
| Approx Weight | 7,300lbs |
