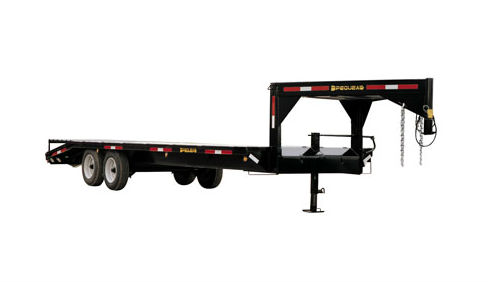

Pequea G-20
Gooseneck Trailers G-20
Overview:
Heavy loads call for strength, stability and tight maneuvering. Pequea G-Series Gooseneck Trailers deliver on all counts. Pequea G-Series Trailers have the heaviest gooseneck and frame in their class for day in and day out use, combining precise construction with amenities like a standard built in toolbox, a mesh stora... + Read More
Features
G-20 - 20k GVWR, Deck Length 25' (includes 4' beavertail), Deck Width 102", Hitch Height 38"-48"
Specifications
| Specifications | G-20 |
| Overall Length | 32' 9" |
| Overall Width | 102" |
| Deck Length | 25'* |
| Deck Width | 96" |
| Deck Height | 36" |
| Hitch Height | 38"-48" |
| Beavertail Height | 5' |
| Mainframe | 10" channel@15.3 lbs. |
| Cross-Members | 4" formed channel@4.5 lbs. |
| Hitch | 2 5/16" adjustable ball |
| Axles | (2) 10,000 lbs. oil bath |
| Brakes | Standard electric brakes (both axles) |
| Suspension | Torflex |
| Wheel Size | 8 bolt 17.5" industrial |
| Tires | |
| Jack Capacity | 12,000 lbs. drop leg side wind |
| GVWR | 20,000 lbs. |
| Trailer Weight | 5,500 lbs. |
