Spreaders SP-7550
V-Maxx™ SP-7550 SP-7550
Overview:

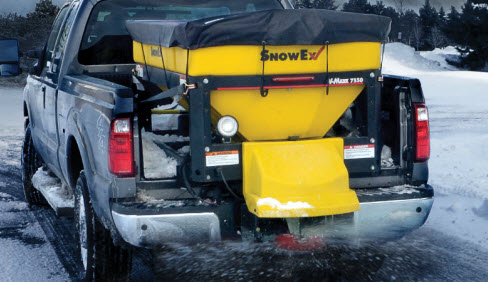

V-Maxx™ SP-7550
If you’re looking to tackle big jobs with a 3/4-ton fleet, the V-Maxx™ SP-7550 is your spreader. Featuring a 1.5-cubic-yard capacity, the SP-7550 can spread virtually any combination of materials…effectively, reliably and accurately.
Features
Inverted “V”
Patented vibrating baffle configuration maximizes material flow.
Auger Transmission
Direct drive transmission transfers power to the auger efficiently and effectively.
Speed Control
Dual variable-speed digital control allows independent adjustment of spread pattern and material flow.
Vibrator
Attached vibrator reduces material clumping for continuous material flow.
Spinner Assembly
Quick-connect spinner drive assembly provides easy hitch access.
Fitted Tarp
A tarp fitted to the spreader’s dimensions protects material from outside weather elements.
Top Screen
A top screen effectively retains material while allowing visibility into the hopper.
Lighting
Auxiliary LED brake light and work light offer better equipment visibility in dark or snowy conditions.
Specifications
| Model | SP-7550 |
| Dimensions | |
| Empty Weight | 550 lb |
| Overall Length | 89½" |
| Overall Height | 34" |
| Overall Width | 49" |
| Floor Length | 66" |
| Floor Width | 44" |
| Hopper Length | 78" |
| Hopper Width | 49" |
| Operational | |
| Capacity (Volume) | Struck 1.5 cu yd |
| Capacity (Volume) | Rounded 1.8 cu yd |
| Capacity (Weight) | 3,240 lb |
| Spreading Width | Up to 40' |
| Electrical | |
| Speed Control | Digital, self-diagnosing dual variable-speed control |
| Wiring Harness | Completely loomed with molded plugs |
| Construction | |
| Frame | Powder coated steel |
| Hopper | One-piece LLDPE safety yellow poly with integral vertical rib construction |
| Motors | Dual, 12-volt DC motor mounted in weather resistant enclosure |
| Spinner Drive Assembly | Compact, independent weather-tight patented motor transmission |
| Spinner | 12" heavy-duty urethane spinner with integral hub assembly |
| Auger Drive Assembly | Heavy-duty solid steel construction with maximum-torque motor transmission drive |
| Auger | 5" heavy-duty variable pitch steel flighting |
| Mounting | Positive locking mount with bolt-down kit and ratchet-strap assist |
| Standard Equipment | |
| Top Screen | 5/16" steel rod construction with grid pattern |
| Cover | Fitted tarp |
| Vibrator | Standard heavy-duty 12-volt DC |
| Inverted | Patented vibrating inverted "V" to maximize material flow |
| Brake Light | Yes |
| Work Light | Yes |
