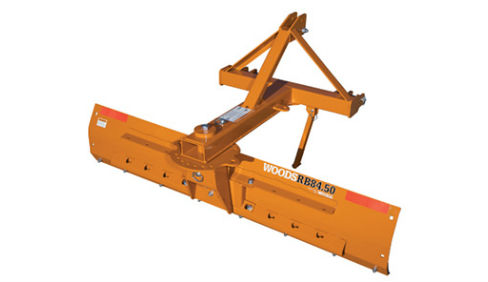

Woods RB84.50
Rear Blades RB84.50
Overview:
Ideal for grading dirt or gravel, cleaning up construction sites and moving snow.
Features
- Manual model with optional hydraulic angle
- Easy manual slide to offset
- Wide A-frame design with high-strength 17” tall steel moldboard for durability
- Double-beveled, reversible cutting edge for long life
- Relief valve included with hydraulic angle helps protect tractor and rear blade when striking unexpected objects
- Parking stand is included for added convenience
- Optional end plates and skid shoes increase productivity and versatility
Specifications
| Tractor Engine HP | 30-65 hp |
| Tractor hitch | Cat 1 & 2 |
| Working width | 83" |
| Moldboard height | 17" |
| Moldboard thickness | 0.250" (grade 80) |
| Weight | 475 lbs |
| Reversible Cutting Edge Dimensions | 1/2" x 6" |
| Pivot angle | 7 positions up to 45° (mech or hyd) |
| Offset | 6", 12", 18" left or right |
| Axle Size | 5 positions up to 23° |
| Parking Stand | standard |
| End plates | optional |
| Skid shoes | optional |
| Tail wheel | yes |
